Web VAcuum Cleaning System

The innovative tool to reduce defects and improve profits.

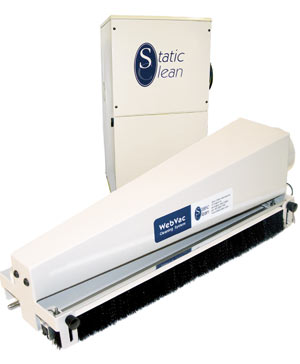

The WebVac Web Cleaning System from Static Clean is a continuous-duty cleaning system designed to
provide contact or non contact cleaning of narrow and wide webs in a variety of critical applications–
enabling converters the ability to simultaneously improve the quality of product and increase profits
by reducing rejects.

Features:

• Removes contaminants and neutralizes static electricity in one step
• Compact design, for installation in confined spaces
• Quiet operation, less than 70dbA at 2 feet
• Rugged all-metal construction for durability
• Low maintenance, no operator intervention required
• Designed for continuous operation
• Adjustable mounting brackets for accurate positioning
• Choice of side draft or triangle hood designs
• Choice of contact or non-contact cleaning
• Affordable and economical
• Easy to install and easy to operate
• Replaceable filter
• Loosens, lifts and captures contaminants for thorough cleaning and reduced contamination on the web

The WebVac incorporates several key elements:

• Contact Cleaning Brush - Gently brushes the web surface to dislodge embedded particles. Height adjustable to suit the application.
• Static Neutralizing Bar – A shockless electrical static bar, complete with a remote high voltage AC transformer and 6 feet of alpha shielded high voltage cable. Safe to operate
  and easy to maintain.
• Vacuum Hood – Features a tapered design to deliver consistent results by evenly distributing the
  envelope of suction across the web.
• Steel compressed air blow-off tube – The tube’s uniform hole placement assures uniform
  edge-to-edge blow-off to complement the suction provided by the vacuum hood and collector.
• High volume vacuum/collector – Creates the powerful suction that captures contaminants lifted
  from the web surface and holds them for later disposal.
