Checkline LED Narrow Web Stroboscopes - LS-3-LED

AAA Press is an Authorized Distributor of Checkline Strobes

LED Inspection Strobe Light - 40 LEDs in 10 x 4 array

#1 SELLING LED STROBE

The new LS-3-LED is a high-performance LED stroboscope designed for inspection of webs up to 10"/25cm. Built-in strobe control allows for easy adjustment of flash rate, brightness, phase and more. External input allows syncing the strobe with a remote sensor.

The LS-3-LED features a rugged aluminum housing with forty, high performance LEDs providing a peak brightness of 5000 Lux and convenient adjustment of flash duration to easily select the optimal balance of brightness and image sharpness. A convenient tripod mount allows for easy installation on a range of equipment.

Features:

• 40 high power LEDs produce 5000 Lux peak brightness
• Flash range of 30 - 300,000 FPM (0.5-5000 Hz) with user-selected units of Hz or FPM (flashes per minute)
• Selectable units of "FPM, "Hz" or "1/MIN"
• Adjustable flash duration allows for optimal tuning of brightness and image sharpness for every application
• Can be configured for external trigger input providing flash control via sensor input
• Designed for fixed-mounting using 1/4"-20 tripod mount or 2 M5 threaded inserts
• Supplied with wall plug type AC-adapter (100 - 265V AC)
• CE Certified with 1-Year warranty

  To download Checkline LS-3-LED brochure click here.

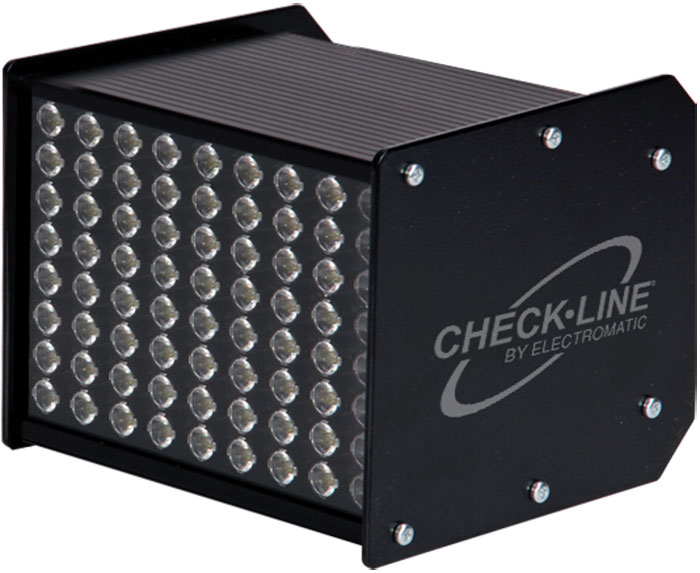

Checkline LED Linear Stroboscopes - LS-5-LED

LED Inspection Strobe Light - 80 LEDs in 10 x 8 array

The new LS-5-LED is a high-performance strobe light offering brighter white light for inspection of high speed printed product on press or in post inspection. LEDs produce a uniform light distribution for web widths up to 12" (300 mm) and wider.

High light Output: 80 high-performance LEDs provide powerful light intensity. The large, homogenous illumination surface delivers superb results in difficult light conditions, making the LS-5-LED suitable for a wide range of measurement, observation and inspection functions, especially for demanding applications, such as those in the printing industry.

Superb image sharpness: Adjustable flash duration from 1 to 1000 micro seconds, allows you to easily find the best combination between light intensity and sharp images for every application.

Flexible adjustments for all applications: Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various strobe control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs.

Additional control options: LS-5-FCM: A simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.

LS-5-RCU: For adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.

Features:

• Light intensity of 6000 Lux peak
• Extremely bright and uniform light distribution for web widths up to 12" (300 mm) and wider when connected parallel
• Connections include two trigger inputs and one trigger output; power can be connected in either of these three locations
• LEDs provide lifetime use and never require replacement
• Requires 24V DC power (not included); an optional power adapter is available
• For web widths greater than 12" (300 mm), two or more strobes can be connected in parallel
• CE Certified with 1-Year warranty

 To download Checkline LS-5-LED brochure click here.

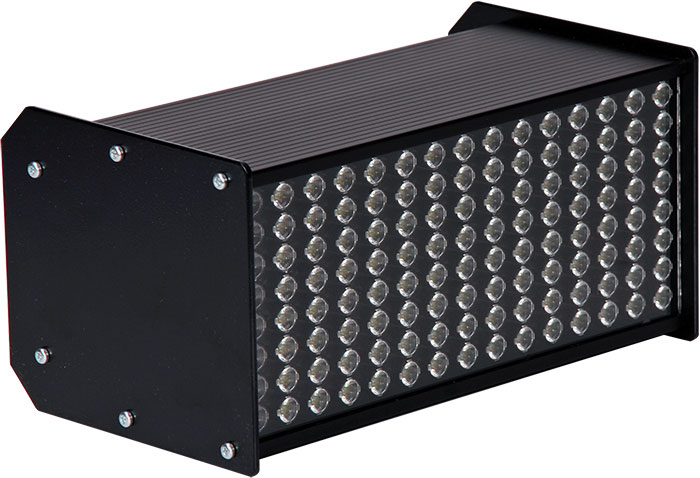

Checkline LED Linear Stroboscopes - LS-9-LED

LED Inspection Stroboscope - 120 LEDs in 15 x 8 array

The new LS-9-LED is a high-performance strobe light offering brighter white light for inspection of high speed printed product on press or in post inspection. LEDs produce a uniform light distribution for web widths up to 500 mm (20 inches) and wider.

High light output
Due to the use of 120 of the industry's latest high-performance LEDs, the LS-9-LED offers a powerful light intensity. The large, homogenous illumination surface delivers superb results even at difficult light conditions, making the LS-9-LED suitable for a very wide range of measurement, observation and inspection functions. It is especially suitable for demanding applications, such as those in the printing industry.

Superb image sharpness
With an adjustable flash duration from 1-1000 μseconds, you will easily find the best combination between light intensity and sharp images for every application.

Flexible adjustments to all applications
Alternatively, the stroboscope can be controlled directly by the trigger signal of your system without the need for additional control units or by various RT strobe control devices. When using these trigger options simultaneously, you can easily alternate between the signal inputs by using the switch on the reverse side of the device.

Additional control options

• LS-5-FCM - a simple and inexpensive unit for controlling flash frequency. You simply insert this small control unit into one of the sockets on the reverse side of the device.
• LS-5-RCU - for adjusting the flash frequency, phase shift, delay time and trigger divider. This unit is connected to the stroboscope by cable and provides the convenience of remote control even if the stroboscope within your machine is difficult to access.

Features:

• LEDs provide lifetime use and never require replacement
• Extremely bright and uniform light distribution over an area of 300 x 500 mm (12" x 20")
• Uses 120 of the newest generation LEDs in a 15 x 8 array providing 7500 Lux, peak
• For web widths > 500 mm (20"), two (2) or more strobes can be connected in parallel
• Requires 24V DC power (not included); an optional power adapter is available
• Connection include two (2) trigger inputs and 1 trigger output. Power can be connected in either of these 3 locations
• Adjustable brightness and image sharpness permits operator to optimize strobe for each application
• CE Certified with 1-year warranty

  To download Checkline LS-9-LED brochure click here.
